Laser vs Plasma Cutting
Precision, speed, and efficiency compared
Laser Cutting
- Tight tolerances ±0.01 to ±0.05 mm
- Clean edges, no burrs
- 2× Faster on Thin Materials
- Lower Energy Consumption
- Can Cut Almost any Material
- Less Labor: No Finishing
Plasma Cutting
- Looser Tolerances ±1 to ±3 mm
- Slag and burrs
- Faster on Thick Materials
- Higher energy usage
- Conductive Metals Only
- More Labor: Grinding/Finishing
Applications for Two-Chuck Tube Laser
Favored by metal sheet fabrication factories, automation lines and large fabrication stations, this metal tube laser cutting machine can accurately cut various complex shapes on metal pipes such as carbon steel, stainless steel, and aluminum.
PIPE
TUBE
CHANNEL
ELLIPTICAL / OVAL
High Performance
Low Cost
Easy to Use
High Speed
Fiber X-Tube: Features
A fully enclosed structure with exclusive optical fiber wavelength visible protection window and dust removal system that meet all environmental standards. Every detail promises a safe and pollution-free environment.
- ◆ The double chuck system ensures secure, non-slip pipe holding during high-speed cutting. This enables accurate alignment, even when cutting long or heavy tubes.
- ◆ With automatic centering and servo-driven feeding, the machine maintains precision and saves time during batch processing. Operators benefit from reduced manual handling and faster setup.
- ◆ Side-mounted machine frame design lowers the center of gravity, enhancing structural stability. It also simplifies loading and unloading, making operation and maintenance more convenient.
- ◆ Choose from various power options (1000W–12000W) to suit your material type and thickness.
- ◆ Automatic feeding system simplifies large-volume processing. Minimize downtime and reduce manual labor costs with seamless integration.
Machine Specifications
Machine Controller Software
Full 3D Environment
Three dimensional recreation in real time of machine, its operations, and nest being cut.
Straightforward, Simple UI
Sleek, clean, and easy to use UI offers next level performance with simple, straightforward controls.
Power Loss Recovery
Our built-in Nest Recovery tool will come to your aid if unexpected power loss happens during production.
Nesting Software
Powerful, yet intuitive nesting software is at your fingertips. Providing a plethora of tools and user adjustable options to make this usually time-consuming part of the manufacturing process a breeze.
Steel Solutions Nesting Software
- ◆ Intuitive Plate Nesting Software Pre-Installed on Controller.
- ◆ Auto-Nesting with User Assigned Parameters Increases Overall Throughput.
- ◆ Help Video Library and Service Tech Chat with Maintenance Plan.
Full CAD/CAM Part Editing Package
- ◆ Easily Edit Your DXF/DWG Drawing Files.
- ◆ Generate Lead-Ins / Lead-Outs.
- ◆ Built-in 3D Part Viewer.
Customizeable Shape Library
- ◆ Large Array of Standard Shapes for Commonly Made Parts.
- ◆ Chain/Commonline Cutting Options.
- ◆ Save Custom Parts To Library for Quick Loading.
Built-In Remnant Manager
- ◆ Keep Track of all Leftover Remnants.
- ◆ Customize Settings for Criteria for Leftover Remnants.
- ◆ Load Leftover Remnants as Plates to Nest Parts On.
OPTIONAL ADVANCED UPGRADES AVAILABLE
- ◆ Structural DXF Importing
- ◆ 3D Importing From Solidworks or Inventor
- ◆ DSTV+ Importing
- ◆ Structural Part Multing
- ◆ Assembly Marking

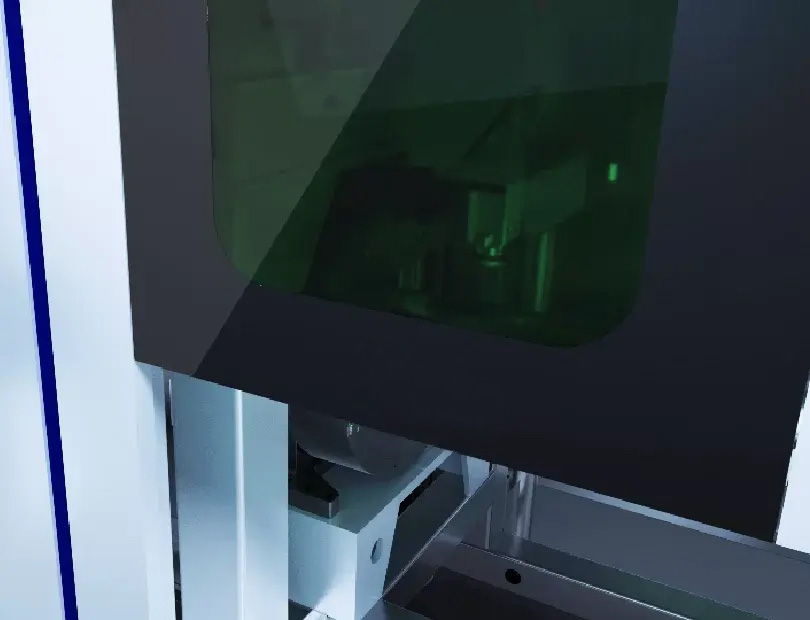

Safe Cutting Environment
Special safety-glass and sealed cutting areas provide a safe view of the processing area during operation, while an independent safety system allows you to load a new tube section with no production interrupting.
Collision Protection
The laser cutting head automatically skips or bypasses tilted workpieces, smoothly moving to the next processing position to avoid collisions, effectively reducing the laser head's damage rate.

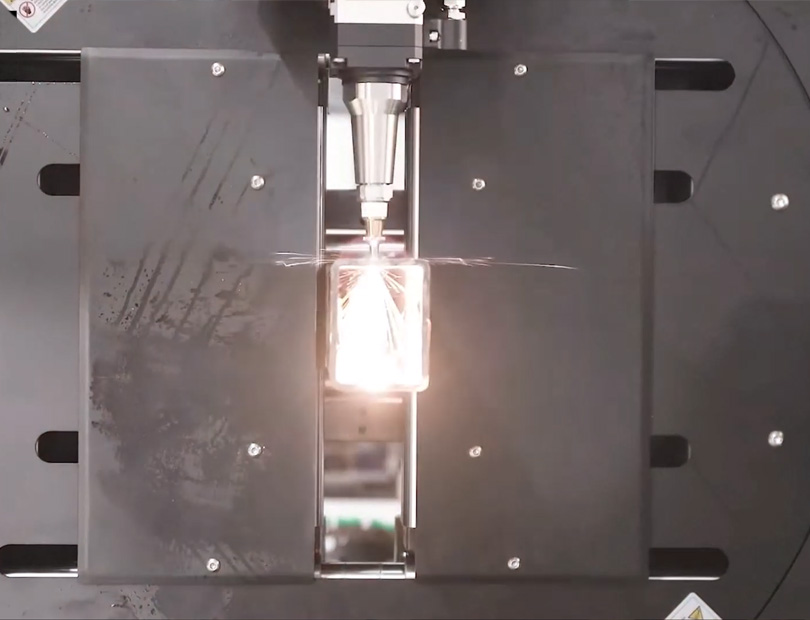

Secure Clamping
Three-chuck clamping with dynamic support ensures stable feeding. Flexible clamping achieves minimal scrap, effectively improving material utilization.
