Steel Solutions

THE BEST SOFTWARE
FOR VIEWING AND EDITING DSTV & DXF FILES

WHAT IS STEEL SOLUTIONS SOFTWARE?

Everything you need to create, edit, and export your structural parts

Try Steel Solutions for Free

Our Download comes with a free 10-day trial for the Part Viewing Package. The Viewer Module will import DSTV and DXF files to be dimensioned and viewed in 2D or 3D. Purchase a license for the Part Viewer for only $99!

Get Started for Free

Different Packages Available

We offer separate packages that will unlock different features based on your company's needs. Our most popular is the Structural Part Editor which will allow you create and edit parts.


View Available Packages

Maintenance Plan Available

Our optional software maintenance plan will get you free upgrades to new versions as they are released and professional software support by phone or by email. Click below to learn more.


Learn About Maintenance
IMPORT PARTS FROM MULTIPLE FORMATS, OR CREATE YOUR OWN
Steel Solutions Part Viewer

Structural Part Importing and Creation

Import parts from DSTV, DXF, SVG or create parts from scratch using a customizable shape library. Choose from a list of predefined shapes (including structural material such as beams, angle, channel, and tubing) or create your own.

Auto-Dimensioning

Accurate and reliable measurements are generated with our auto-dimensiong to help you quickly and easily verify that your parts are correct. You can even save or print these dimensions using our PDF exporting.

2D and 3D Part Viewing

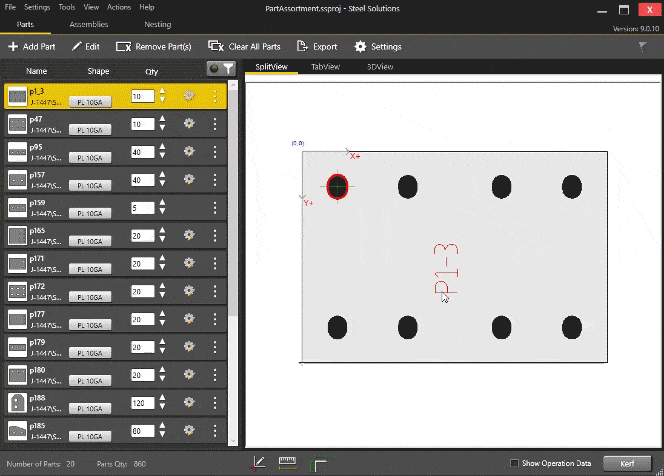

Check parts in 2D which incudes a split-view and a tab-view, or view parts rendered in full 3D to see the finished part.

Get Started for Free

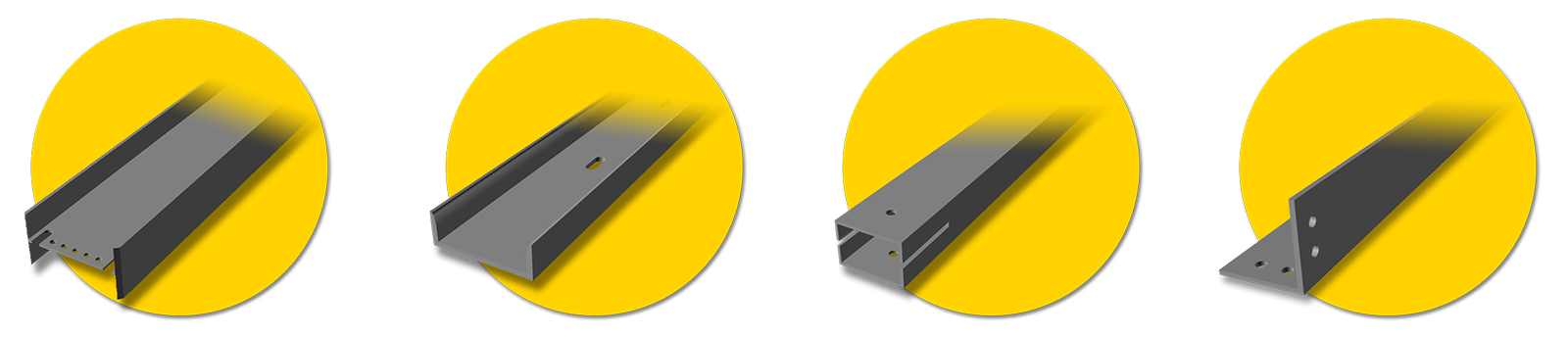

Built-in Shape Library includes Beam, Channel, Tubing, and Angle

3D Beam Tubing Angle
NEWLY RE-DESIGNED PART EDITOR FEATURES A FULL CAD/CAM PACKAGE
DXF Part Editor

Structural Part Development

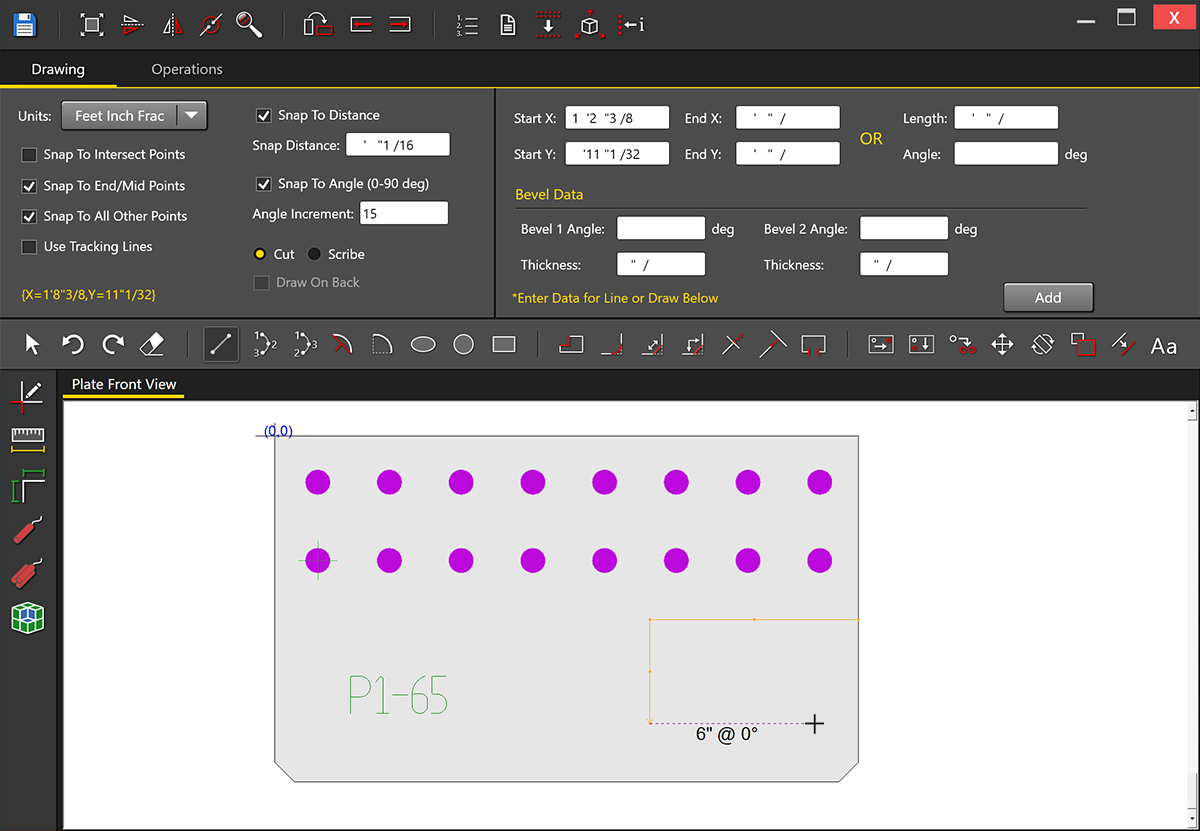

Our new part editor comes complete with an array of drawing tools and programmable operations for building new parts or editing existing ones.

Automated Part Correction

Automated part improvement includes path smoothing and scribe trimming as well as checking for duplicate operations and bad connections on a part.

Lead-In / Lead-Out Generation

Steel Solutions will automatically generates leads based on thickness, leads can be changed for each individual path or modified all at once.

STRUCTURAL DXF & VECTOR GRAPHICS IMPORTING

Structural DXF Importing

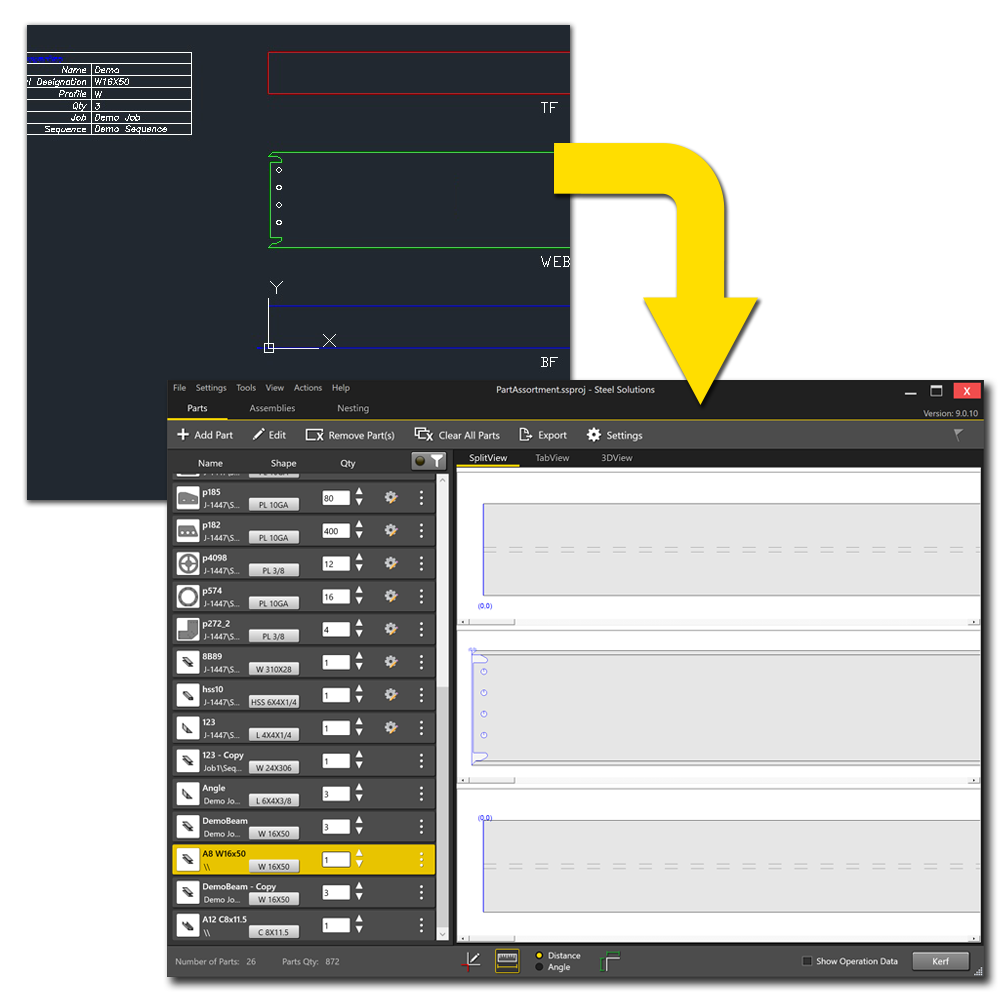

We now offer Structural DXF Importing as an optional add-on to most of our available packages. Import structural DXF files from Auto-Cad including beams, angle, channel and tubing to edit and export as DSTV.

Structural DXF Importing

Vector Graphics Importing

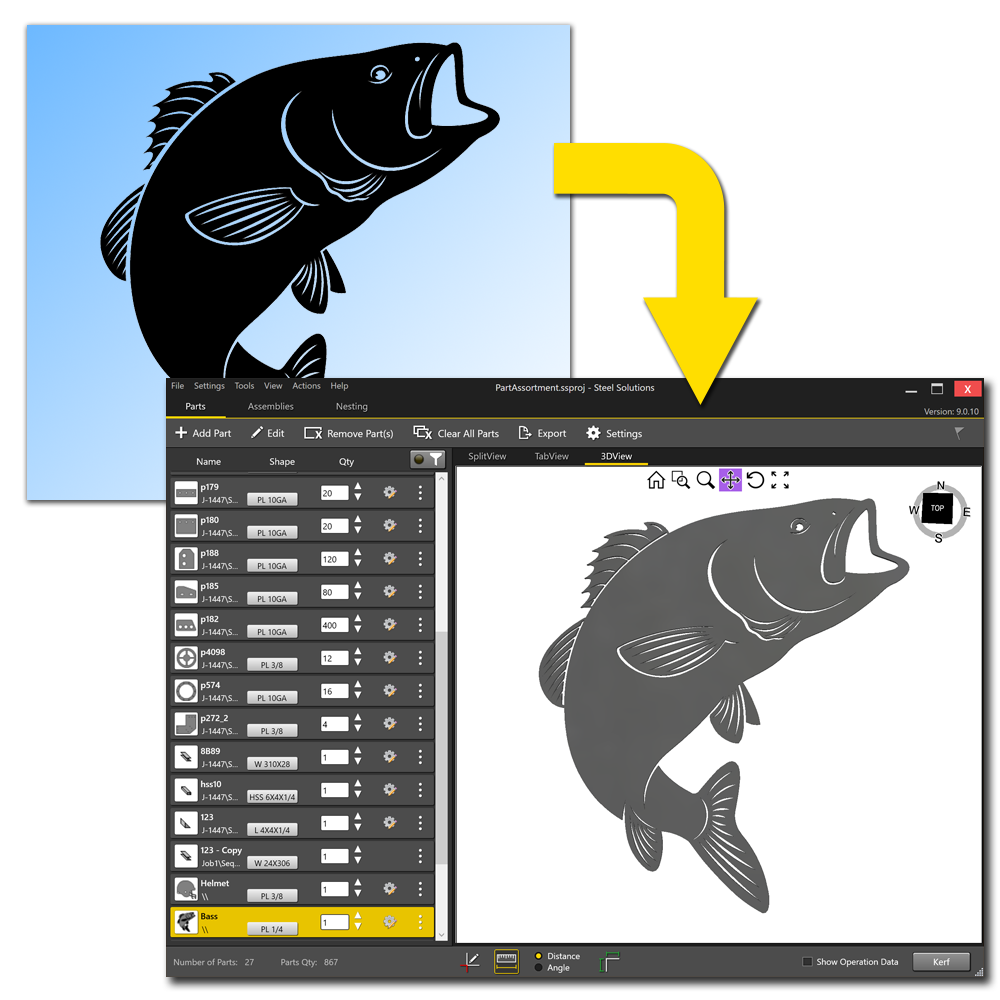

Another recently added feature is the ability to import Vector Graphics files(.svg). Easily scale and edit these parts once they're imported using our built-in array of drawing tools.

SVG File Importing
Tekla Powerfab

ASSEMBLY EXPORTING AND CONNECTION MARK GENERATION

Tekla Powerfab Importing

Assembly Exporting

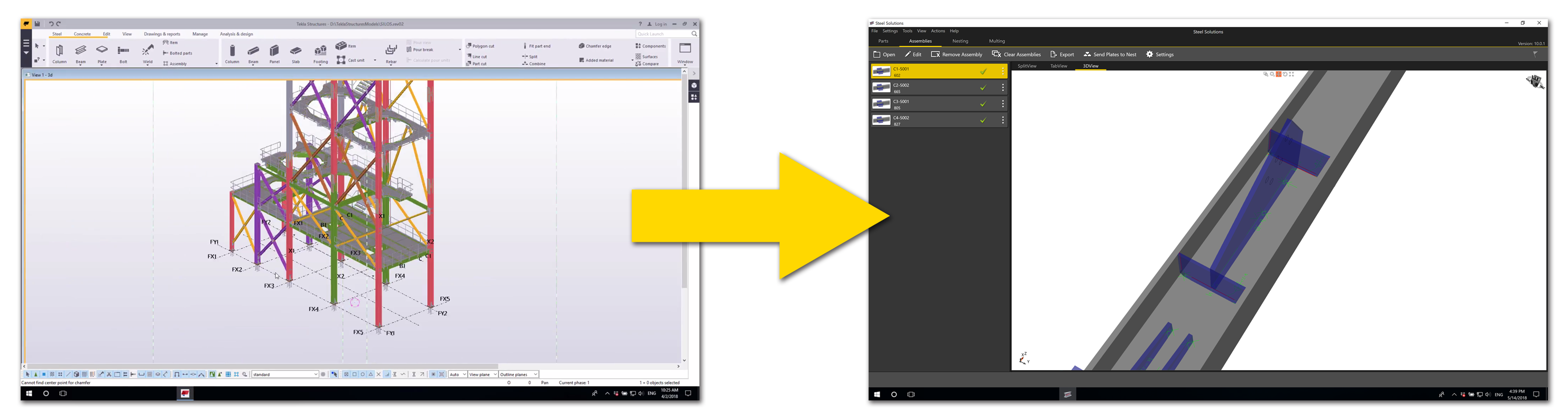

Export assemblies from Tekla with our newly redesigned Assembly Export Module. Select and search for specific assemblies or Export all assemblies at once.

Connection Mark Generation

Upon importing, Steel Solutions will automatically generate the connections marks for the main member of the assembly. Including: Weld Symbols, Hole Pattern Layouts and Scribing

SEAMLESS INTEGRATION WITH INDUSTRY LEADING PROGRAMS

Autodesk Inventor

Now offering integration with Autodesk Inventor 3D software! With an intuitive import settings window, easy to follow steps, and the ability to import sub assembly files, using Inventor with Steel Solutions to up your manufacturing game is a breeze!

Autodesk Inventor Logo

SolidWorks

Using the Solidworks API, Steel Solutions can integrate with either the stand-alone SolidWorks application, or the 3D experience version, with the ability to import individual files or assembly files.

Dassault Solidworks Logo

Strumis MRP

If your company uses the Strumis MRP software and are looking for an advanced nesting program with extensive part editing that works seamlessly with it, we have your match made in heaven!

Strumis MRP Logo
SAVE TIME & MATERIAL WITH AUTOMATIC PLATE NESTING

Advanced Nesting Features

Get the most out of your material with our advanced nesting features such as: true-shape plate nesting, part-in-part, and the built-in optimizer.

Remnant Management

Choose which portion of the plate to save as a remnant by adding a custom cropcut. If a completed nest contains a remnant, it will be automatically added to steel solutions and available for nesting.

Inventory Forcasting

The new Inventory Forecasting feature predicts costs and material that will be required tocomplete a job. Also, compare results between block and true shape nesting.

AVAILABLE PACKAGES & OPTIONS

✔ Included with Package ✚ Optional Upgrade

Feature

Part Viewer

Structural

Nesting

Automatic & Manual Dimensioning

 ✔ ✔ ✔

2D & 3D Part Viewing

 ✔ ✔ ✔

Standard DXF Importing

 ✔ ✔ ✔

Structural DXF Importing

 ✚ ✚

DXF Exporting

 ✔ ✔

DSTV Importing

 ✔ ✔ ✔

DSTV Exporting

 ✔ ✔

Python X DSTV Exporting

 ✚ ✚

Create New Parts

 ✔ ✔

Part Editing

 ✔ ✔

Artwork(Vector Importing, Images, Font Library, Text Generator)

 ✚ ✔

Automatic Path Smoothing

 ✔ ✔

Automatic Scribe Trimming (Corners Only)

 ✔ ✔

Customizable Shape Library

 ✔ ✔

Cope Library

 ✔ ✔

Automatic Stencil Generator

 ✔ ✔

Assembly Importing

 ✚ ✚

3D File Exporting (IGES, STEP, OBJ)

 ✔ ✔

Machine Run Time Estimating

 ✚

Quote Generation

 ✚

Built-In Editable Part Templates

 ✔

Art Kerfing

 ✔

Lead-in/Lead-out Generation

 ✔

Plate Remnant Management

 ✔

Manual Nesting

 ✔

Block Auto-Nesting

 ✔

True Shape Auto-Nesting

 ✔

Zone nesting

 ✔

CNC Exporting

 ✔

Hypertherm CNC Exporting for HPR

 ✚

Inventory Forecasting

 ✔

DXF Nest Exporting

 ✔

*Primary License

 $150 $2300 Call for Pricing

*Additional Licenses

 $100 $863 -

*Prices do not include optional upgrades such as Structural DXF Importing, contact us for more info

SYSTEM REQUIREMENTS

  • Windows 10 (32 or 64 Bit versions), or Windows 11
  • 2.0 Ghz CPU with dual-core processor minimum (Recommended: Quad-Core i5 processor or better)
  • Minimum of 4GB of RAM recommended
  • 0.5 GB of hard disk space for program installation
  • Minimum screen resolution of 1280 x 800

TEAM VIEWER MODULE

With our Quick Support ATek Team Viewer Module, our experts can directly remote into your machine, investigate, and solve any issues to get you back up and running quickly.

Team Viewer Software
MAINTENANCE PLAN

We offer a maintenance package available for 20% or the purchase price due yearly. The first maintenance charge won't be billed until a year after the initial activation.

  • Free Upgrades to the latest versions
  • Software support by phone or email
  • Remote assistance

Contact us for more information: Sales@ateklaserworks.com or 501-481-8927
