Laser vs Plasma Cutting
Precision, speed, and efficiency compared
Laser Cutting
- Tight tolerances ±0.01 to ±0.05 mm
- Clean edges, no burrs
- 2× Faster on Thin Materials
- Lower Energy Consumption
- Can Cut Almost any Material
- Less Labor: No Finishing
Plasma Cutting
- Looser Tolerances ±1 to ±3 mm
- Slag and burrs
- Faster on Thick Materials
- Higher energy usage
- Conductive Metals Only
- More Labor: Grinding/Finishing
Why Choose a 3-Chuck Tube Cutter?
Reduce your material waste to the minimum with our three-chuck tube laser cutting machine. It boosts your tube utilization with virtually no tailings. Three-position tube clamping plus follow-up supports ensure stable tube feeding and prevent long tubes from bending. As a result, you profit from high cutting precision, great efficiency and low material costs. Tube loading weighs up to 180kg with outer diameters up to φ500mm.
Entry-Level & General Purpose
- lower upfront cost
- simpler — easier maintenance
- smaller footprint
- great for short tubes
- works well on thicker, rigid stock
Starts to struggle when:
- tubes exceed 20 ft
- wall thickness gets thin
- tight tolerances are required
- sag & vibration create scrap
Precision & High-Volume Production
- third chuck eliminates mid-tube sag
- higher accuracy and repeatability
- near zero-tailing — less scrap
- continuous feeding = faster throughput
- handles long, thin, or heavy tubes
Trade-offs to consider:
- higher upfront investment
- larger footprint required
- more setup & learning curve
High Performance
Low Cost
Easy to Use
High Speed
Fiber X-Tube: Features
A fully enclosed structure with exclusive optical fiber wavelength visible protection window and dust removal system that meet all environmental standards. Every detail promises a safe and pollution-free environment.
- ◆ The double chuck system ensures secure, non-slip pipe holding during high-speed cutting. This enables accurate alignment, even when cutting long or heavy tubes.
- ◆ With automatic centering and servo-driven feeding, the machine maintains precision and saves time during batch processing. Operators benefit from reduced manual handling and faster setup.
- ◆ Side-mounted machine frame design lowers the center of gravity, enhancing structural stability. It also simplifies loading and unloading, making operation and maintenance more convenient.
- ◆ Choose from various power options (1000W–12000W) to suit your material type and thickness.
- ◆ Automatic feeding system simplifies large-volume processing. Minimize downtime and reduce manual labor costs with seamless integration.
Machine Specifications
Machine Controller Software
Full 3D Environment
Three dimensional recreation in real time of machine, its operations, and nest being cut.
Straightforward, Simple UI
Sleek, clean, and easy to use UI offers next level performance with simple, straightforward controls.
Power Loss Recovery
Our built-in Nest Recovery tool will come to your aid if unexpected power loss happens during production.
Nesting Software
Powerful, yet intuitive nesting software is at your fingertips. Providing a plethora of tools and user adjustable options to make this usually time-consuming part of the manufacturing process a breeze.
Steel Solutions Nesting Software
- ◆ Intuitive Plate Nesting Software Pre-Installed on Controller.
- ◆ Auto-Nesting with User Assigned Parameters Increases Overall Throughput.
- ◆ Help Video Library and Service Tech Chat with Maintenance Plan.
Full CAD/CAM Part Editing Package
- ◆ Easily Edit Your DXF/DWG Drawing Files.
- ◆ Generate Lead-Ins / Lead-Outs.
- ◆ Built-in 3D Part Viewer.
Customizeable Shape Library
- ◆ Large Array of Standard Shapes for Commonly Made Parts.
- ◆ Chain/Commonline Cutting Options.
- ◆ Save Custom Parts To Library for Quick Loading.
Built-In Remnant Manager
- ◆ Keep Track of all Leftover Remnants.
- ◆ Customize Settings for Criteria for Leftover Remnants.
- ◆ Load Leftover Remnants as Plates to Nest Parts On.
OPTIONAL ADVANCED UPGRADES AVAILABLE
- ◆ Structural DXF Importing
- ◆ 3D Importing From Solidworks or Inventor
- ◆ DSTV+ Importing
- ◆ Structural Part Multing
- ◆ Assembly Marking

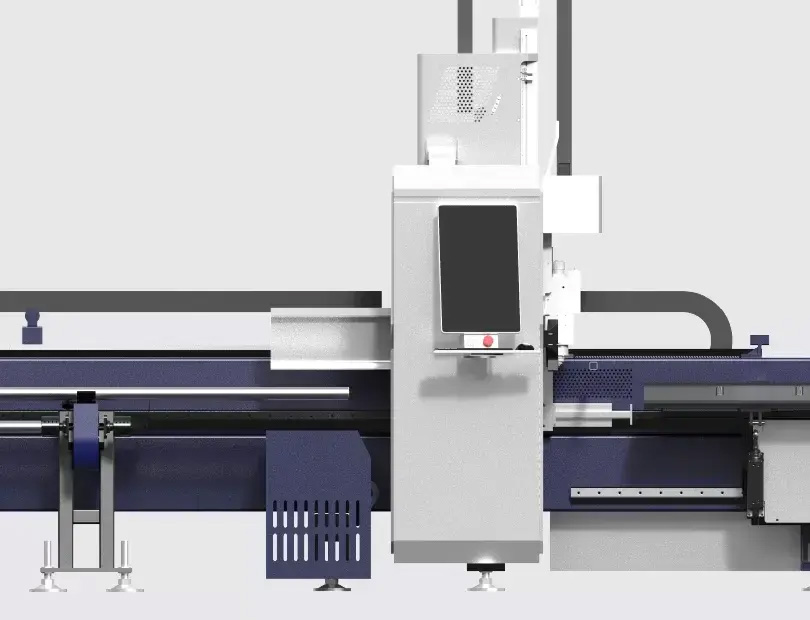

Intelligent Production
Convenient and easy-to-use nesting software on an intelligent touchscreen promises fast and stable performance that is easy to navigate and use.

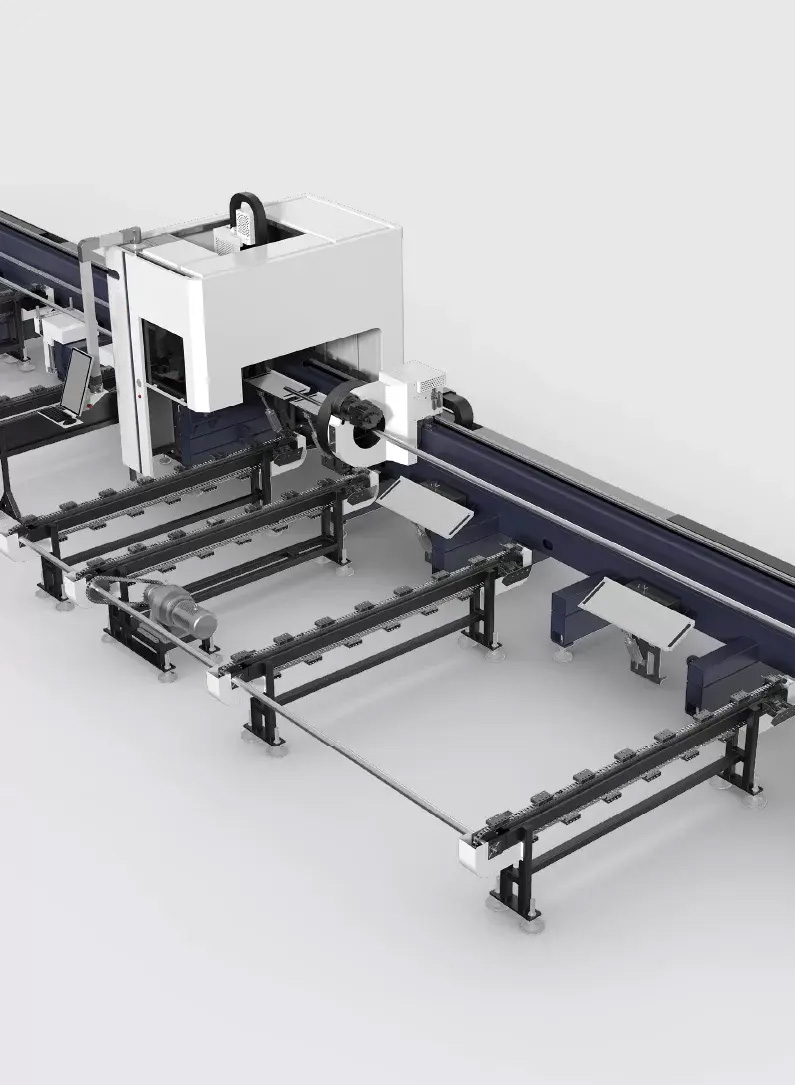

Automatic Loading System
The fully automatic loading system lifts, intelligently sorts, and instantly feeds the whole bundle of tubes. Single tube loading takes only 15 seconds.

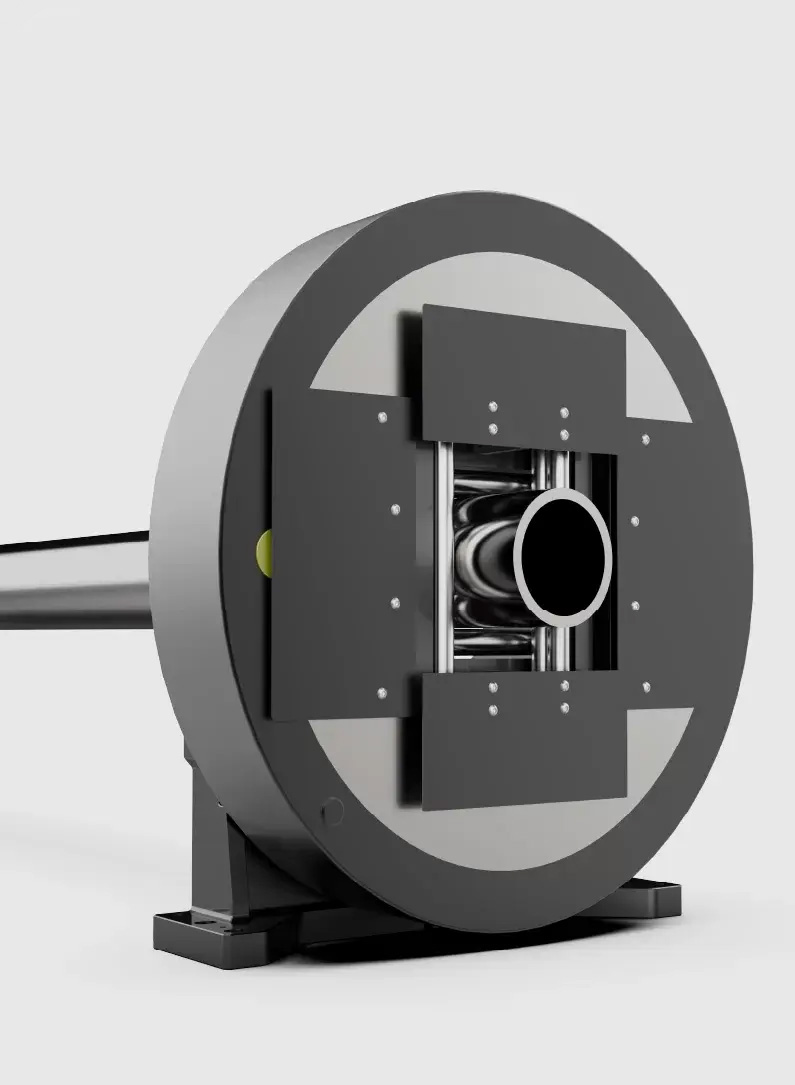

Zero-Tail Cutting
Three-chuck clamping with dynamic support ensures stable feeding. Flexible clamping achieves minimal scrap, effectively improving material utilization.
